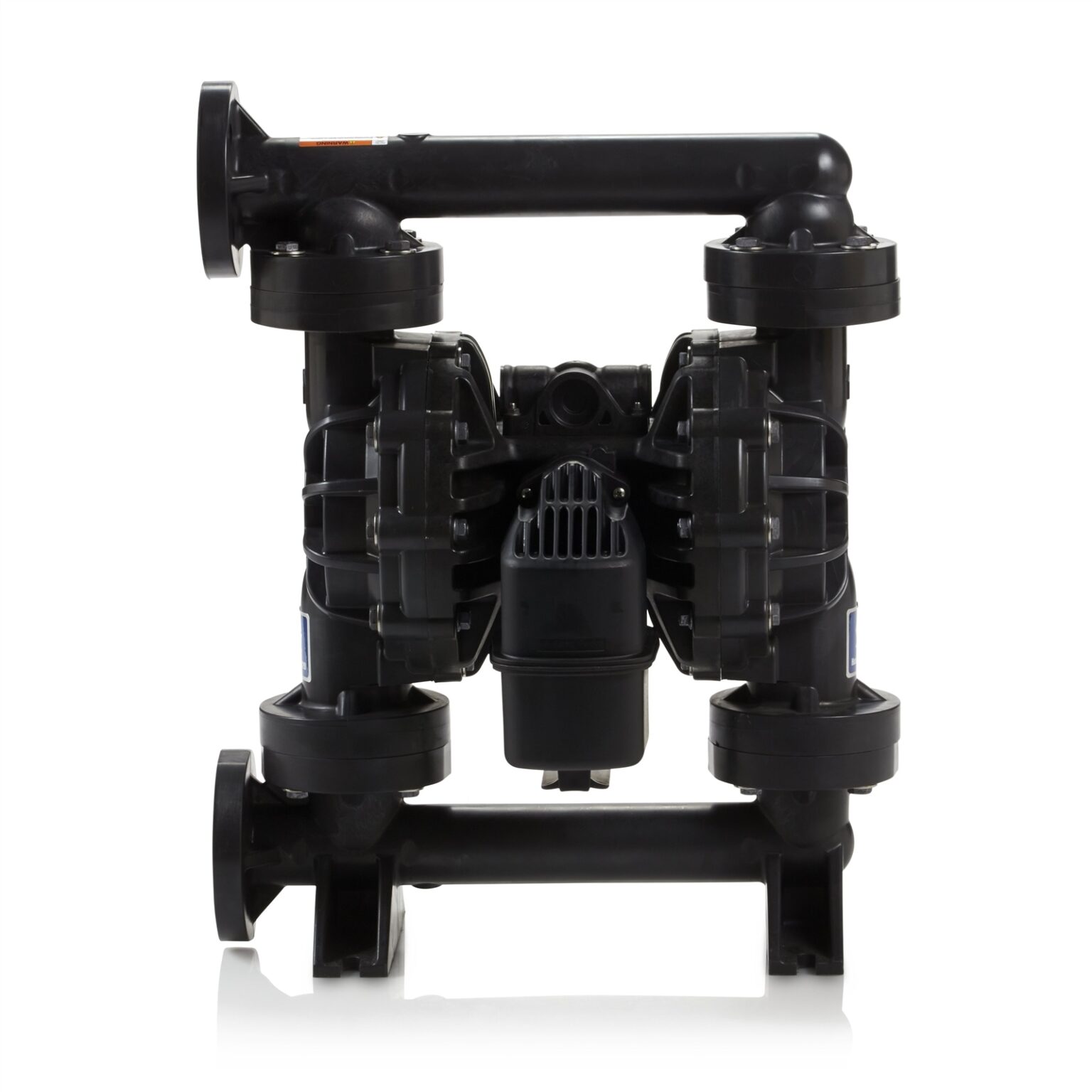

Graco Husky 15120 Diaphragm Pump 1-1/2 Inch PVDF / PTFE 654546

£6,820.80 Excl VAT

Graco Husky 15120 Polypropylene diaphragm pump can provide flow rates of up to 454 LPM. Featuring a Polypropylene centre section and PTFE/EPDM 2-Piece diaphragms. Part Number: 654546

Technical information
BallsPTFE
Centre SectionPolypropylene
DiaphragmsPTFE/EPDM 2-Piece
Fluid SectionPVDF (Kynar)
PowerAir
Fluid Inlet1-1/2"
Fluid Outlet1-1/2"
Air Inlet1/2"
Flow Rate454 LPM
Max Pressure8 Bar
Max Solids6.3mm
BrandGraco
FamilyHusky
Product TypePump
Pump TypeDiaphragm
RangeHusky 15120
Part Number654546
Pump Code15120F | F2 | PV/PT/PT/PT

Additional information

  • Overall improved efficiency (up to 40% more efficient)
  • Highest fluid flow rate in its class
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
  • Expanded material offering to handle endless applications
  • 1-1/2 in (38.1 mm) ANSI center and end-porting options available
  • High flow – 120 gpm (454 lpm) in a compact, portable size
  • Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
  • Lube-free operation
  • Available in polypropylene and PVDF
