Electric Diaphragm Pumps

Electric diaphragm pumps, also known as electrically-operated diaphragm (EODD) pumps, are ideal for applications requiring low pulsation and smooth flow.



The patented air-charged drive eliminates or reduces pulsation without expensive dampeners or surge tanks.



Key Features

  • State of the art technology allows pump to stall under pressure preventing pump failures from clogged lines or closed valves
  • Energy efficient electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps
  • Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump condition
QUANTM electric diaphragm pumps (EODDs) are well-suited to modern surface finishing operations.

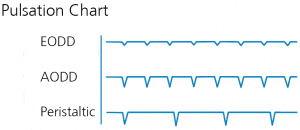

pulsation chart 300x130 1 by CDR Pumps

Specification

  • Power Source: Electric
  • Certification Required: No Certification
  • Fluid Section Material: Polypropylene
  • Pump Inlet/Outlet Size: 1 Inch, 40 gpm (25mm, 151 lpm)
  • Centre Section: Aluminium Centre Housing
  • Porting: Polypropylene
  • Flange ANSI/DIN
  • Seats: Polypropylene
  • Balls: Santoprene
  • Diaphragms: Santoprene
  • Manifold O-Rings: PTFE

The Range of QUANTM Electric Diaphragm Pumps

1 inch Electric Diaphragm Pump

1.5 inch Electric Diaphragm Pump

2 inch Electric Diaphragm Pump

Hygienic Electric Diaphragm Pump
