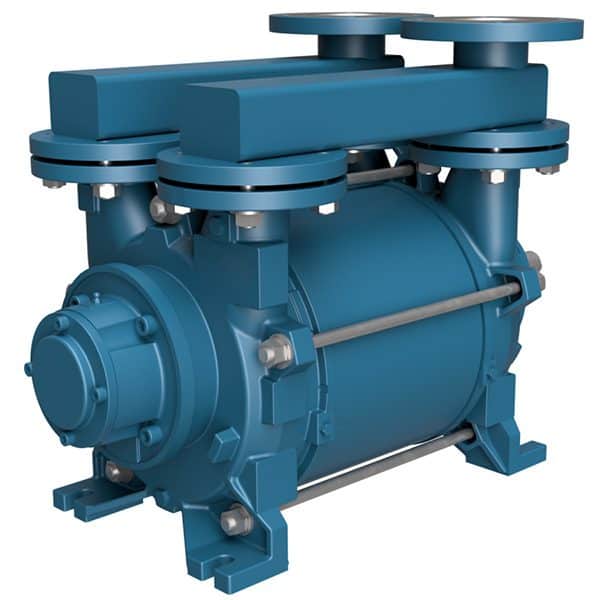

Liquid Ring Vacuum Pumps

CDR Pumps is an official supplier of Travaini liquid ring vacuum pumps in the UK. We supply genuine Travaini pumps across the UK with full technical support from our specialist engineers.

Liquid ring vacuum pumps deliver consistent, reliable performance and are available in a wide range of metallurgies and sealing options to suit specific applications, including use in hazardous, flammable and explosive areas. Their versatility and reliability make them widely used in facilities of all sizes and across many industries.

Available as single- or two-stage liquid ring units, these pumps can handle high volumes of vapours, condensable gases and liquids without compromising performance or mechanical reliability. The service liquid – water or other liquids, oils or solvents – can be selected to suit almost any application. When clean water is used, the aspirated air is ‘washed’ free of contaminants such as oil, carbon or plastics.

Manufactured to ISO 9001 standards, Pompetravaini’s liquid ring vacuum pumps are designed for simplicity and reliability. Fewer components simplify maintenance, while minimal moving parts eliminate metal-to-metal contact, significantly reducing vibration, noise and wear.

Key Features

Single or double mechanical seal (DIN 24960 standard)
Designed and manufactured to ISO 9001 standards
Close-coupled and long-coupled options with open impeller.
Fewer components for improved rigidity and easier maintenance
Compact dimensions with reduced shaft length minimising deflection and vibration
Simple design with no valves or sliding vanes
Impeller is the only rotating part – no metal-to-metal contact, reducing wear and tear
ATEX certification available on request

Materials

Cast iron
AISI 316
Ni-Resist D2B
Hastelloy B
Hastelloy C
Uranus B6
Exotic alloys

Vacuum Systems

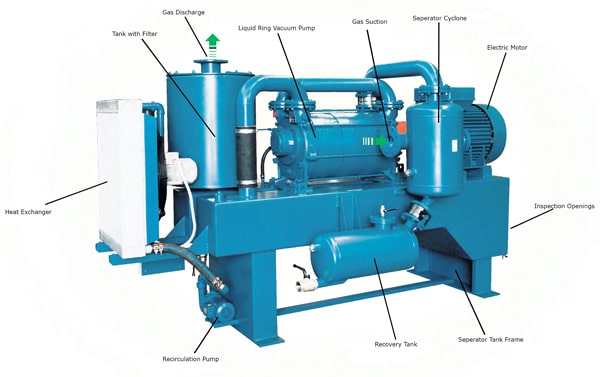

Complete vacuum systems are also available including a liquid ring pump, air-liquid cyclone separator and a heat exchanger mounted on a compact skid

Common industries and applications

Plastic and glass processing, medical, chemical and pharmaceutical, food, timber, construction, pulp and paper, mining, power plants, water treatment, aircraft and automotive.
