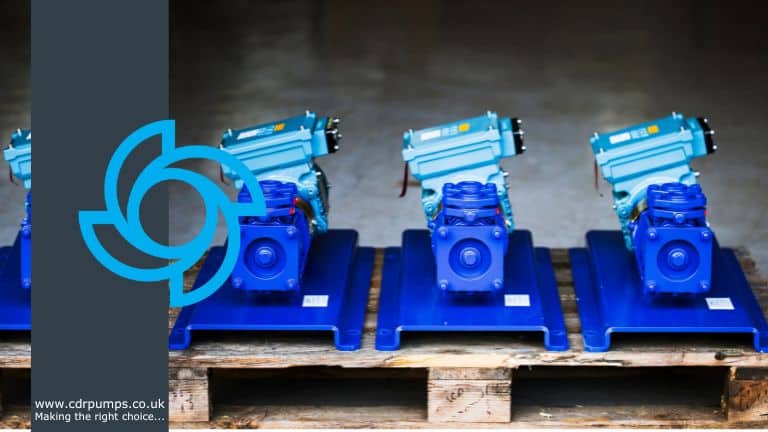

Side Channel Pumps

Side channel pumps fill the gap between centrifugal and positive displacement pumps.

Using a distinctive star impeller, fluids are energised while gas content passes through channels without causing the pump to stall. Available as mechanically sealed or magnetically driven units with various configurations and material options.

These pumps can handle gas-entrained liquids with up to 50% inclusion at temperatures from -20°C to +120°C as standard, extendable to -60°C to +220°C with modifications. The modular design offers over 4,800 mechanical variants for flexibility to suit your system requirements.

Key Features of Side Channel Pumps

High differential head – ideal for pumping liquids across long distances or through small pipework
Handles high gas content (up to 50%) – a reliable choice for applications involving condensates, LPG, and other gaseous liquids.
Self-priming suction lift of up to 8.5m

Low Net Positive Suction Head (NPSH) – operates with as little as 0.35m and handles liquids near boiling point without cavitation

Wide temperature range – from -20°C to +120°C as standard, extendable to -60°C to +220°C with modifications
Efficient and economical in low-flow applications – suited to applications as low as 0.4m³/hr
High pressure – up to 40 bar (8-9x higher than centrifugal pumps)
Easy to control head and flow due to steep operating curves
Handles low viscosity fluids
Mechanical seal and magnetically driven options

Common Applications

Methanol transfer for ship engines
Battery electrolyte handling
Carbon capture applications
Boiler feedwater systems
Condensate extraction and transfer
Liquefied gas handling
Tank emptying
Heating, ventilation and air conditioning (HVAC) systems
Reverse osmosis systems
Liquid circulation including thermal oil transfer
Refrigerant circulation and hot water recirculation
Chemical processing including the transfer of volatile chemicals, liquefied gases and corrosive liquids
