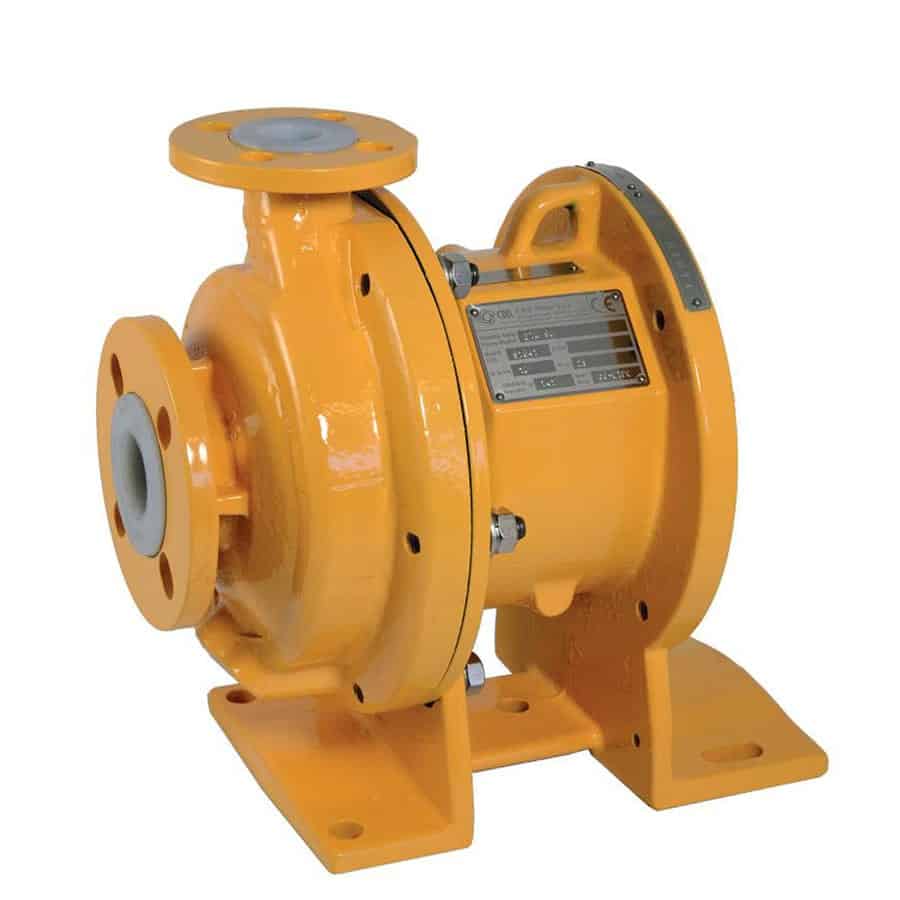

The ETN EVO magnet drive pump is a versatile and reliable choice designed for lower duties. Available in three sizes – the ETN EVO 50, the ETN EVO 60 and the ETN EVO 70 – it is well known as the workhorse of all the mag drive pumps.
With the option of ETFE or Polypropylene lined wetted parts, this centrifugal pump is ideal for a variety of different applications. The synchronous drive configuration is based on an outer magnet ring assembly built to magnetically couple with an inner magnet ring assembly.
The hugely popular ETN range has recently seen some modifications to enhance the already standing reliability and robustness of these pumps and now features a new internal circulation path to improve flushing and lubrication of bushes, which in turn leads to increased reliability, even under stress conditions such as operating the pump at the end of its curve.
The last serial number for the ETN-L is SN63872 and all ETN pumps from SN63908 onwards are the new ETN EVO.
Our unique lining technology means these pumps have high resistance to toxic and volatile chemicals whilst a totally seal-less design means that your product is totally contained resulting in zero vapour loss. The ductile iron armour protects the fluoroplastic surfaces of the pump and the integral impeller and magnet combination prevents any potential misalignment problems.
Shaft Seal Type: Magnetic drive
Design: EN 22858 – sub- ISO 2858
Casing & Impeller Materials: Polypropylene or ETFE lined
Impeller Type: Closed
Execution: Close-coupled
Flanges: UNI 1092-2 (ISO 7005-2) PN16RF drilling slotted ANSI150RF
Max rated pressure @ 20°C: PN 10
Max Fluid Temperature: Polypropylene: 0°C / +65°C – ETFE: -15°C / +95°C
Max Flow Rate @ 2900 rpm: 56 m3/h
Max Head @ 2900 rpm: 35 m
Allowable medium viscosity range: 1 cSt – 60 cSt
ATEX Certification: Available on request
